Product Introduction：

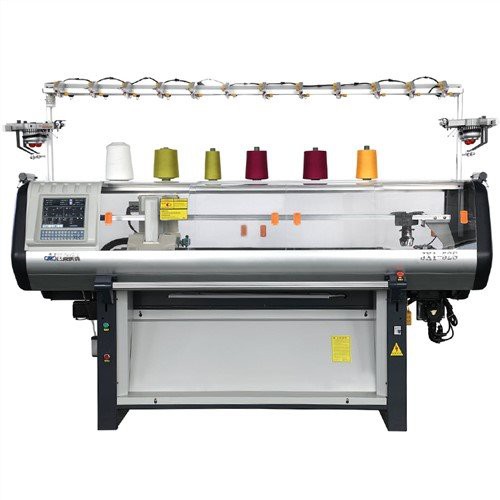

High Speed Polo T-shirt Collar and Cuff Knitting Machine
Mainly engaged in computer flat knitting machine, dial linking machine and the associated knitting machinery and spare parts sales. Equipped with the advanced production facilities made in USA and Japan. We are in the top range of designing, R&D and manufacturing in the global knitting industry. We have a group of well-experienced professional technicians major in knitting machine and high qualified management.
Now the manufacturing covers an area of 4000 square meters, we has more than 200 technical staff, over 20 R&D engineering team and management team.
Product Parameter
Gauge | 12G//14G/16G/18G |
Size | 52 Inch/66 Inch/72 Inch/ 80 Inch/100 Inch |
Knitting Speed | Max knitting speed 1.4m/s,32 speed sections controlled by servo motor. |
Knitting system | Single carriage with double systems |
Rib transfer | Both front and back, not affecting by the carriage direction, separately knitting |
Stitch Density | 64 density selection range 0-650 controlled by stepping motor,electrical fine adjust technology. |
Sinker system | The stepping motor can adjust the movable settling plate, and can be adjusted according to different fabrics to achieve a pluarity of collecting and putting effects. |
Dynamic Stitch | Device by dynamic stitch technology, achieve the variety stitches in one course and variety density in one course to improve knitting efficiency and variety. |
Roller Device | Device with up-position roller, 24 sections of automatic control with subsection adjustment. |
Yarn Carrier | 2*16 yarn feeders on both sides of 1 guide rail of 8, switchover on any position of needle bed (special intarsia yarn feeders optional) |
Rapid Gyration | With rapid gyration in one-needle period, the efficiency can be raised by 14% especially when knitting narrow weaving like sleeve. |
Protection device | The machine will atomically alarm if yarn-breaking, knots, rewind, end of knitting, fail of racking, needle jack crash, error programming occur, also with safety auto lock protection device |
Safety device | The protecting cover is equipped with stopping sensor,emergency stopping,power off device,the whole machine cover to reduce noise and dust. |
Data input | Through the USB,computer connection for direct input of data |
Language choice | Multi language version:support Chinese, English, Arabia and other language,meanwhile according to customer's needs and the required language |
Driving system | Belt drive, AC servo control |
Power off memory | Device advanced CMOS technology, when power off happen, the knitting data and file is saved for restart knitting. |
Function of Intelligent Computer Files | Create parameters like thickness, traction and speed with intelligent plate making program, save time for creating parameters on the machine. |
Net connection | High speed Ethernet, maximum connect 254 machines for file input to fulfil monitor and data sharing. |
Power | Voltage:AC 220V, Frequency:50HZ/60HZ, Power:0.5KW |
Product details
① Carriage:Maximum speed is 1.4m/s, adjustable according to the width and patterns of knitwear to avoid invalid movement and achieve high efficiency. It also has short circuit protection of electromagnet, current excessive and jam protection of motor.
② Scissors and Lips:When woven products，scissors and clamps work with each other，so it can cut the yarn which connect with fabric but temporarily unused. This can avoid the waste yarn and product damage or because of thread is too long，possible existence of yarn winding and so hazards. Wasted time of hand-cut yarn will be save and increase efficiency，and easier to production management.
③ Cam board:The latest cam board controlled by stepper motor transmission, performance is more stable.
④ Yarn Storage:Positive Yarn Storage could reduce resistance while the yarn is moving, is suitable for fabric with low elasticity and brittleness such as cashmere yarn, rabbit hair yarn and so on in a result to make the products more even and smooth, as well as improve the machine weaving efficiency.
⑤ Safety Device:When an emergency or simple maintenance work (such as threading, needle changing, cleaning etc.), do not need to turn off the main power supply, press this switch to lock the machine and stop working, which can effectively avoid accidents and emergencies Occurs, it can more effectively protect human and machine.
Product application
Product qualification
Package, Deliver, shipping
Our company uses wooden case packing machine to ensure the safety of the machine in long-distance transportation.
FAQ
Q: How do I purchase your goods?
A: Please send us inquiry via website, email us, or add friend on WeChat ,Whatsapp through mobile no. and you can also give us a call to tell us your needs, we’ll reply you ASAP.
Q: How do you do about quality control?
A:Quality is above everything.We always attach great importance to quality controlling from the beginning to the end.Each products are tested one by one which must be in accordance with the factory quality standard before arranged to packing.
Q.How can I request a Product List?
A: To request a full catalog, please leave your message below, we will get back to you soon.
Q.What if I receive products I am not satisfied with?
A: We aren't happy unless you are!. If something is not up to your standards - please let us know! We will do everything in our power to make it right. Also, please refer to our Return policy, leave message below, we will send the policy to you soon.
Q：How long is the lead time?
A: Normally it takes 1-4 weeks after receive deposit. (Actually it depends on the quantity of order)
