Product Introduction：

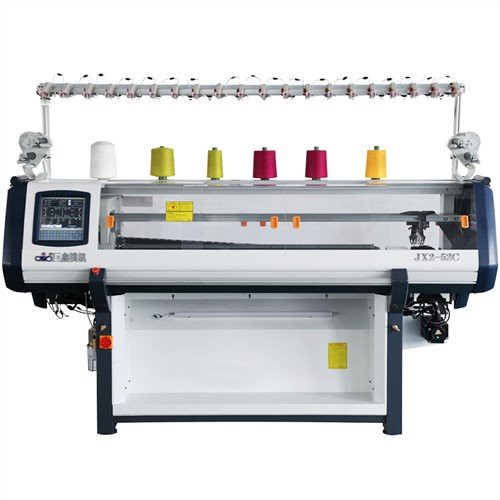

Two Carriages Collar Knitting Machine applies unique cam and needle bed to achieve transfer, tuck, eyelet stitch, jacquard, apparent shape, hidden shape and other regular pattern knitting functions. It can knit basic stitch like plain stitch, rib fabric, links and links, interlock stitch, etc. irregular multi-color jacquard, twist flowers weft
organization, aran, cord weave, racked stitch, cable, intarsia, etc.
Product Parameter
Gauge | 12G//14G/16G/18G |
Size | 52 Inch/66 Inch/72 Inch/ 80 Inch/100 Inch |
Knitting Speed | Max knitting speed 1.4m/s,32 speed sections controlled by servo motor. |
Stitch Density | 64 density selection range 0-650 controlled by stepping motor,electrical fine adjust technology. |
Roller Device | Device with up-position roller, 24 sections of automatic control with subsection adjustment. |
Rapid Gyration | With rapid gyration in one-needle period, the efficiency can be raised by 14% especially when knitting narrow weaving like sleeve. |
Protection device | Automatic stopping,device if yarn broken,yarn knot,batching,striking,completion,overload,designated starting and stopping,program error happen. |
Safety device | The protecting cover is equipped with stopping sensor,emergency stopping,power off device,the whole machine cover to reduce noise and dust. |
File input | USB or NET |
Function of Intelligent Computer Files | Create parameters like thickness, traction and speed with intelligent plate making program, save time for creating parameters on the machine. |
Net connection | High speed Ethernet, maximum connect 254 machines for file input to fulfil monitor and data sharing. |
Product details
① Stitch Motor:With dynamic stitch function, using high speed stepping motor,multi-stitch function can be achieved in one line.
② Display Screen:It adopts industry LCD display with graphic touch control, multi-color. The data of knitting amount, time, speed, roller, stitch, yarn feeder, etc. is all can be seen on the screen.
③ Yarn Storage:Positive Yarn Storage could reduce resistance while the yarn is moving, is especially suitable for fabric with lack of elasticity and brittleness such as cashmere yarn, rabbit hair yarn, to make the fabric even and improve knitting efficiency.
④ Servo Motor:Using CANI communication control, can achieve the fast return and the diversion of the machine head, accurate positioning, smooth commutation.
Product application
Product qualification
Package, Deliver, shipping
Our company uses wooden case packing machine to ensure the safety of the machine in long-distance transportation.
