Product Introduction：

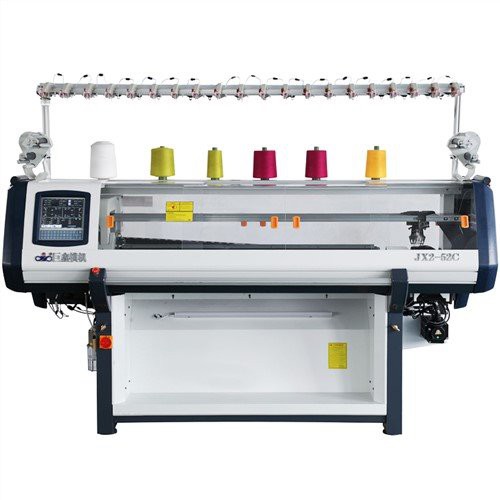

Scarf knitting machine is single carriage two systems or three systems with single up-position roller meet the tension requirement for partial knitting. Fulfil the perfect take down of fabric. Equipped with infrared detecting alarm system, can effectively avoid the missing alarm and needle hit. Reversing system is controlled by stepping motor, increase the carriage return speed and productivity as well as avoid the worn of the carriage rail.
Product Parameter
Gauge | 7G/9G/10G/12G/13G/14G/16G |
Size | 52 Inch/66 Inch/72 Inch/ 80 Inch/100 Inch |
Knitting Speed | Max knitting speed 1.6m/s,32 speed sections controlled by servo motor. |
Rib transfer | Both front and back, not affecting by the carriage direction, separately knitting |
Stitch Density | 64 density selection range 0-650 controlled by stepping motor,electrical fine adjust technology. |
Sinker system | The stepping motor can adjust the movable settling plate, and can be adjusted according to different fabrics to achieve a pluarity of collecting and putting effects. |
Dynamic Stitch | Device by dynamic stitch technology, achieve the variety stitches in one course and variety density in one course to improve knitting efficiency and variety. |
Roller Device | Device with up-position roller, 24 sections of automatic control with subsection adjustment. |
Yarn Carrier | 2*16 yarn feeders on both sides of 1 guide rail of 8, switchover on any position of needle bed (special intarsia yarn feeders optional) |
Single or double rack | Motor drive rack, achieve 1/2 or 1/4 needle rack at any position. Double rack max 2.5 inches one side and double side max 5 inches, apply to 5G, 7G and 5/7G. Single rack max 2 inches one side, apply to 9G-16G. |
Rapid Gyration | With rapid gyration in one-needle period, the efficiency can be raised by 14% especially when knitting narrow weaving like sleeve. |
Protection device | The machine will atomically alarm if yarn-breaking, knots, rewind, end of knitting, fail of racking, needle jack crash, error programming occur, also with safety auto lock protection device |
Safety device | The protecting cover is equipped with stopping sensor,emergency stopping,power off device,the whole machine cover to reduce noise and dust. |
File input | USB or NET |
Language choice | Multi language version:support Chinese, English, Arabia and other language,meanwhile according to customer's needs and the required language |
Driving system | Belt drive, AC servo control |
Power off memory | Device advanced CMOS technology, when power off happen, the knitting data and file is saved for restart knitting. |
Function of Intelligent Computer Files | Create parameters like thickness, traction and speed with intelligent plate making program, save time for creating parameters on the machine. |
Net connection | High speed Ethernet, maximum connect 254 machines for file input to fulfil monitor and data sharing. |
Power | Voltage:AC 220V, Frequency:50HZ/60HZ, Power:1.5KW |
Product details
① Stitch Motor:With dynamic stitch function, using high speed stepping motor,multi-stitch function can be achieved in one line
② Display Screen:It adopts industry LCD display with graphic touch control, multi-color. The data of knitting amount, time, speed, roller, stitch, yarn feeder, etc. is all can be seen on the screen.
8+
③ Yarn Storage:Positive Yarn Storage could reduce resistance while the yarn is moving, is especially suitable for fabric with lack of elasticity and brittleness such as cashmere yarn, rabbit hair yarn, to make the fabric even and improve knitting efficiency.
④ Servo Motor:Using CANI communication control, can achieve the fast return and the diversion of the machine head, accurate positioning, smooth commutation.
⑤ Safety Device:When an emergency or simple maintenance work (such as threading, needle changing, cleaning etc.), do not need to turn off the main power supply, press this switch to lock the machine and stop working, which can effectively avoid accidents and emergencies Occurs, it can more effectively protect human and machine.
Product application
Product qualification
Package, Deliver, shipping
Our company uses wooden case packing machine to ensure the safety of the machine in long-distance transportation.
